Products

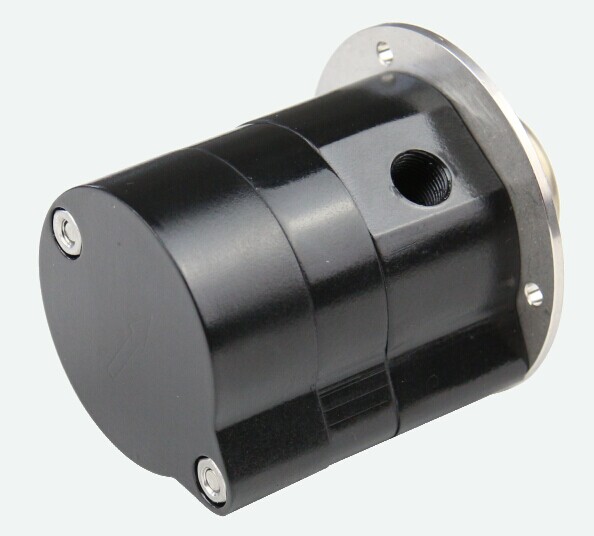

MG200PK

MG200PK Magnetic drive gear pump is a new gear pump, which uses the new gear and the housing made of special engineering plastics. And the gear pump highly corrosive liquids, can work properly without lubricating fluid applications. Application structural design of magnetic coupling transmission, gear shaft end solve the problem of leakage, it is called a leak-free gear pump is mainly used for curing agent casting equipment (acid type) transport, as well as laboratory or strong chemical production trace alkali liquid transportation field.

Model specification

Model	MG	2	00	P	K
Position	1	2	3	4	5
1	Pump Type	MG = Magnetic drive gear pumps
2	Pump Series	2 = 2 series
3	Gear height	04 = 4mm 09 = 9mm 13 = 13mm
4	Shell material	P = PPS plastic
5	Gear Material	K = PEEKM plastic

Technical parameters

Specifications Model	Displacement (ml / rev)	Maximum Pressure (bar)	System pressure (bar)	Rev. range (rpm)	Medium viscosity (cps)
MG204PK	0.27	2	-0.8 ~ 3	500 to 3000	0.2 to 1500
MG209PK	0.55
MG213PK	0.75

Note: 1, the transmission medium temperature: -10 ℃ ~ 100 ℃ (except frozen); Ambient temperature: -10 ~ 50 ℃.

2, the inner rotor gear pump for NdFeB magnets PPS plastic coated, static seal material FKM, shaft material Hastelloy Alloy or zirconia ceramic rotor cover material inside stainless steel PTFE coating.

3, the liquid containing the particle diameter of ≤20 microns, granule hardness less than the hardness of PEEK.

4, or may be a high pressure (3bar) used in a closed system under vacuum (-0.8bar).

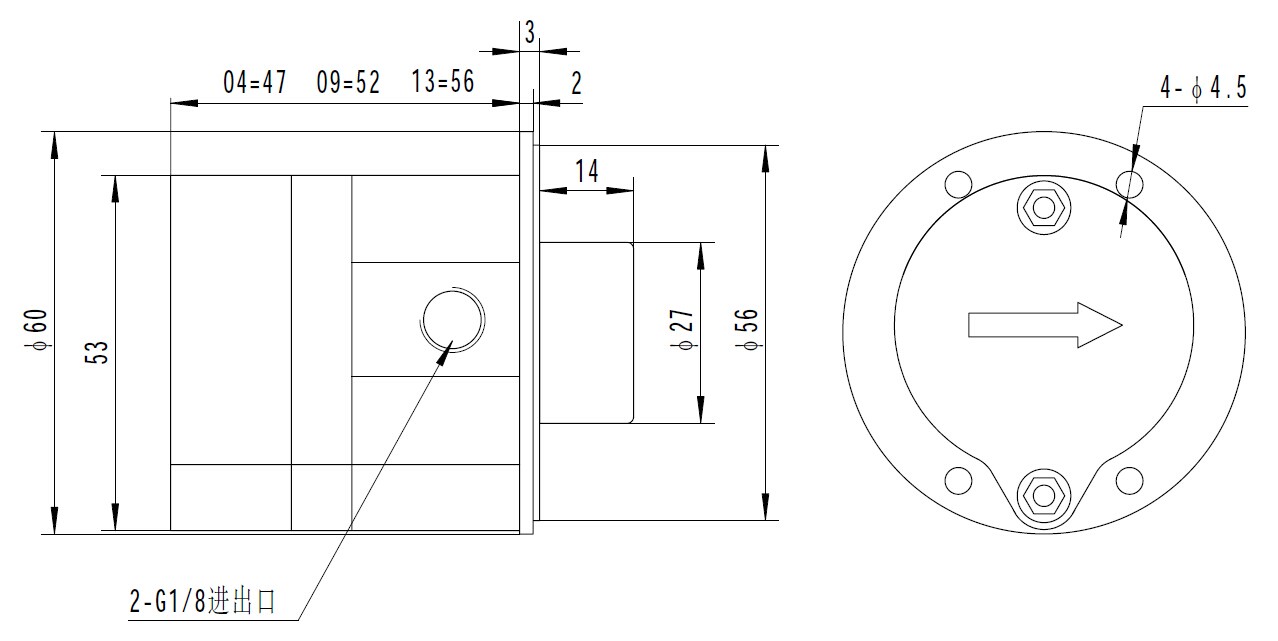

Outline dimension chart:
