Products

G300XK/AC380(220)FB



G300XK / AC220 (380) FBMiniature Gear Pump, using precision machining Stainless steel 316 housing is made of PEEK gear, shaft dynamic seal are made of fluorine rubber seal skeleton. Using AC asynchronous Explosion-Proof Motor-driven, configuration Stainless steel Miniature Gear pump coupling and connection. the advantage is Rev. constant torque, stable and long-term work in explosive environment. the use of ancillary drive, enabling the pump flow regulation.

Model specification

Model

G

3

00

X

K

/

AC380

FB

-

2

/

180

Position

1

2

3

4

5



6

7



8



9

1

Pump Type

G = Miniature Gear Pump

2

Pump Series

3 = 3 series gear pump

3

Gear height

06 = 6mm 12 = 12mm 17 = 17mm

4

Shell material

X = Stainless steel 316

5

Gear Material

K = PEEK B = green copper

6

Motor voltage

AC220 = AC 220V three-phase AC380 = AC 380V

7

Motor Types

FB = Explosion-Proof Motor

8

Motor Rev.

2 = 2 pole Motor 4 = 4-pole Motor

9

Motor Power

180 = 180W

Technical parameters

Model

preset pressure

Flow range

Maximum Power

System pressure

Motor Rev.

G306XK / AC220 (380) FB

5bar

100 ~ 1500ml / min

180W

-0.5 ~ 5bar

2-pole or 4-pole

G312XK / AC220 (380) FB

200 ~ 3000ml / min

G317XK / AC220 (380) FB

300 ~ 4500ml / min

Note: 1, suitable ambient temperature: -10 ℃ ~ 50 ℃; Humidity: ≤75%.

2, Motor Power: 2 and 4-pole are 180W.

3, Motor Voltage: AC220V or AC380V.

4, Speed ​​mode: with inverter.

5, explosion-proof mark: ExdⅡBT4.

suitable areas

• Fine Chemicals • fuel delivery

• Metering systems • Automotive Repair

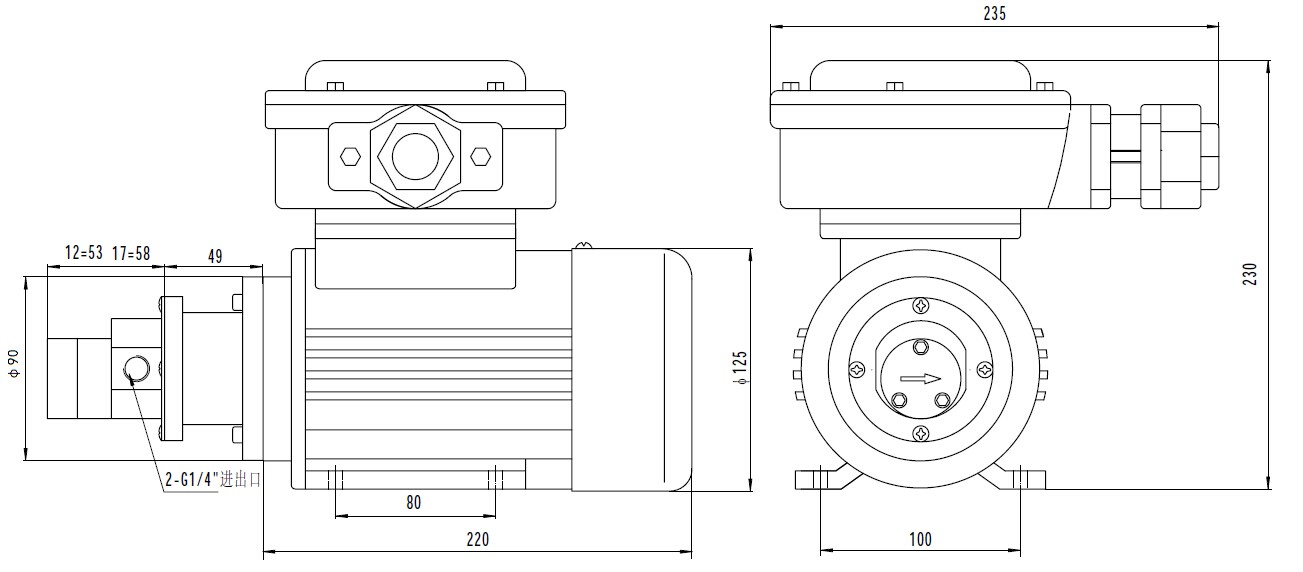

Outline dimension chart:





Flow graph:
