Products

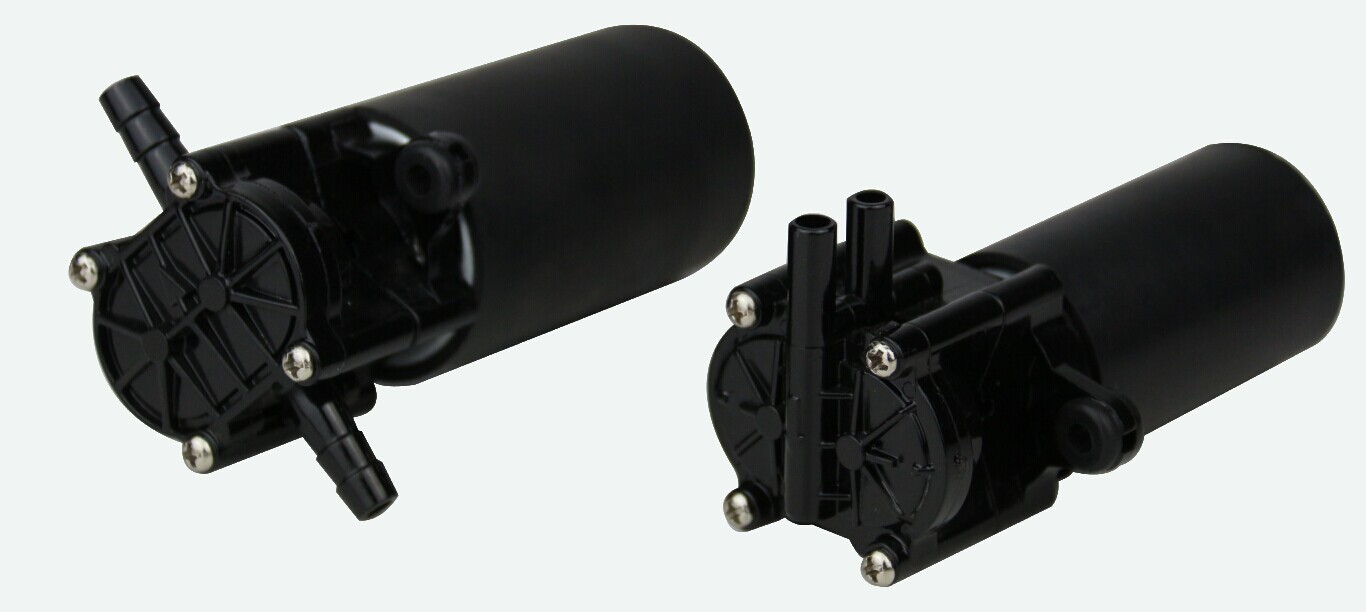

PG2



PG Series Plastic gear pump using the deceleration torque-structure, PPS manufactured housing and gears with brush motor driver to do with the characteristics of small size suitable for intermittent high pressure transmission medium occasions widely used in small appliances: such as coffee machines, sanitary ware, ice-making machines, drinking fountains and the like.

Model specification

Model

FG

2

/

DC

12

A

Position

1

2



3

4

5

1

Pump Type

PG = Plastic gear pump

2

Pump Series

2 = 2 = Series 4 Series 4

3

Motor Types

DC = DC brush motor

4

Motor voltage

12 = 12V 24 = 24V

5

Motor Rev.

PG2A = 8000rpm B = 12000rpm PG4A = 5000rpm B = 8000rpm

Technical parameters

Model

Maximum pressure

flow

Power

Rev.

PG2 / DC12A

1.5bar

1.5L / min

20W

8000rpm

PG2 / DC24A

1.5bar

1.5L / min

20W

8000rpm

PG2 / DC12B

2.5bar

2.5L / min

40W

12000rpm

PG2 / DC24B

2.5bar

2.5L / min

40W

12000rpm

PG4 / DC12A

1.5bar

1.5L / min

20W

5000rpm

PG4 / DC24A

1.5bar

1.5L / min

20W

5000rpm

PG4 / DC12B

2.5bar

2.5L / min

40W

8000rpm

PG4 / DC24B

2.5bar

2.5L / min

40W

8000rpm

Note: 1, ambient temperature: 0 ~ 50 ℃; Humidity: ≤75%.

2, fluid viscosity: 0 ~ 1500CPS; Fluid temperature: -10 ℃ ≤T≤100 ℃ (except freezing).

3, work: Intermittent working system recommends a single working hours do not exceed 10 minutes.

4, using the medium: pure water or an aqueous solution free of impurities, oils.



Outline dimension chart：
