Products

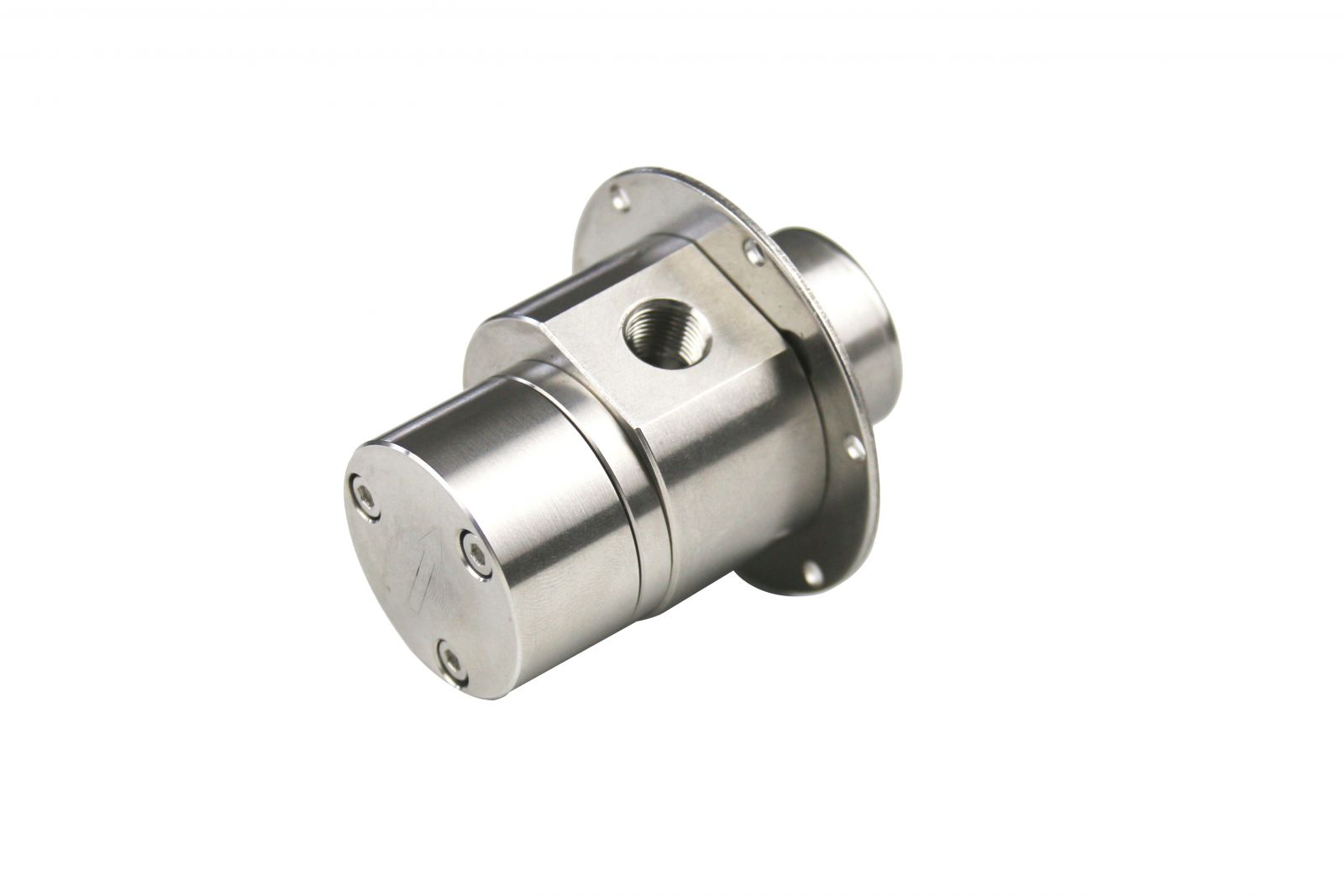

MG200(XK/XB)



MG200 (XK / XB) Magnetic drive gear pump is a new gear pump, XK Series gear made of special engineering, and quality Stainless steel housing composed of a gear pump. XB Series gear made of high-quality copper, Stainless steel shell composition and quality gear pump, the gear pump lubricating fluid in the absence of the case, can work with structural design of magnetic coupling drive to solve the problem of leakage of the gear shaft end. it is known as a gear pump leak mainly used in the field of micro-delivery medical devices, blood dialysis machines, food processing, filling, selling equipment, analytical instruments.

Model specification

Model

MG

2

00

X

K

S

1

A

Position

1

2

3

4

5

6

7

8

1

Pump Type

MG = Magnetic drive gear pumps

2

Pump Series

2 = 2 series

3

Gear height

04 = 4mm 09 = 9mm 13 = 13mm

4

Shell material

X = Stainless steel 316

5

Gear Material

K = PEEKM plastic B = green copper

6

Pressure limiting valve

S represents a gear pump is equipped with built-in pressure limiting valve, no means no pressure limiting valve

7

Import and export orientation

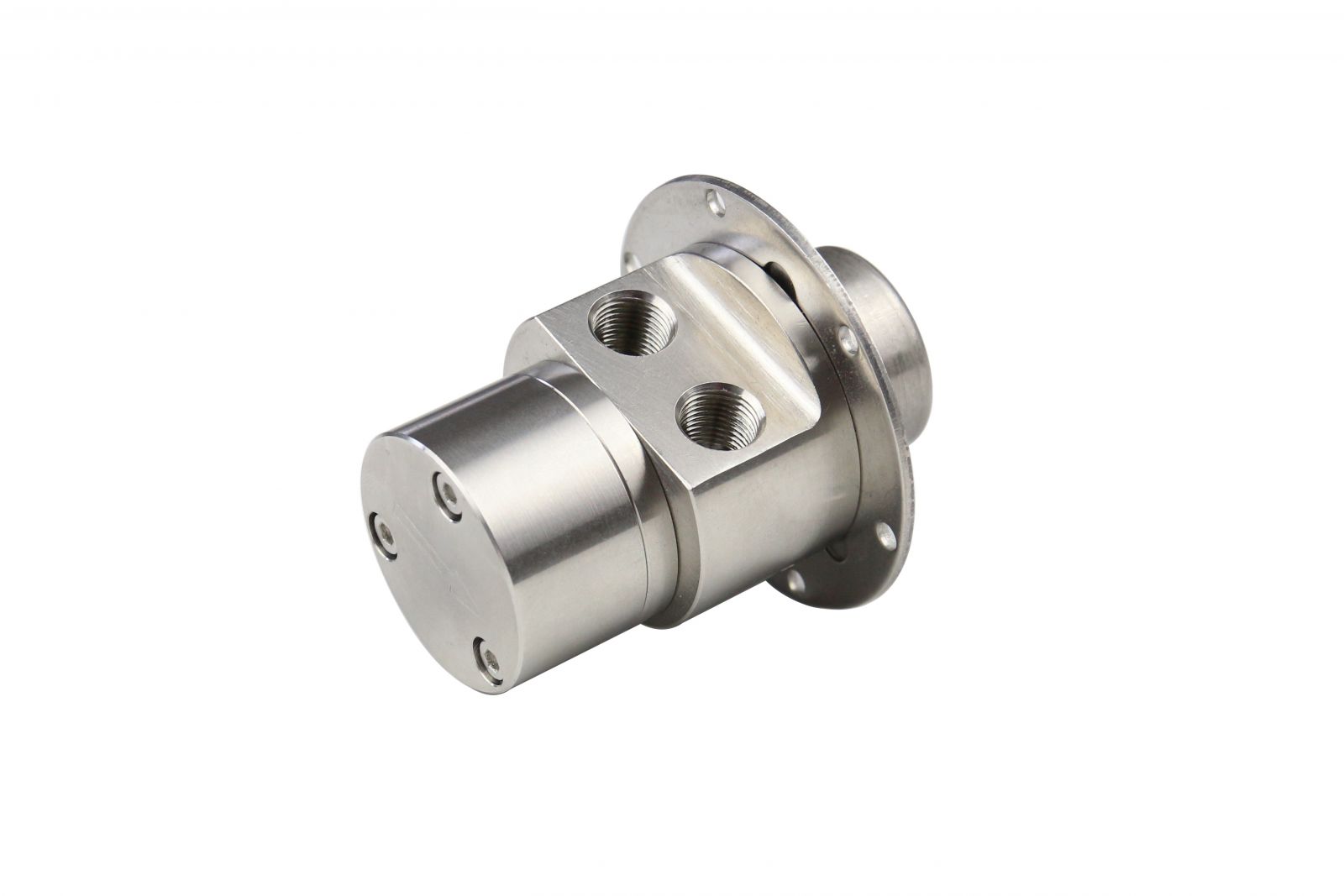

1 shows a pump inlet direction on the same side, without showing the left and right directions in the import and export sides

8

Importers thread

A threaded hole for the import and export express NPT1 / 8 ", indicates no import and export threaded hole G1 / 8"

Technical parameters

Specifications Model

Displacement (ml / rev)

Rated pressure (bar)

System pressure (bar)

Rev. range (rpm)

Medium viscosity (cps)

MG204XK

0.27

5

-0.8 To 20

500 to 3000

0.2 to 3000

MG209XK

0.55

MG213XK

0.75

MG204XB

0.27

3

500 to 3000

500 to 2500

MG209XB

0.55

MG213XB

0.75

Note: 1, the transmission medium temperature: -30 ℃ ~ 100 ℃ (except frozen); Ambient temperature: -30 ~ 50 ℃.

2, the inner rotor gear pump for NdFeB magnets PPS plastic coated, static sealing material is PTFE; rotor cover material Stainless steel 316.

3, the liquid containing the particle diameter of ≤20 microns; PEEK hardness less than the hardness of the particles.

4, MG200XK gear pumps all over the liquid material: comply with FDA standards testing requirements.

5, the work: 24 hours of continuous duty.

6, MG200XB pump is suitable for conveying oil or medium viscosity ≥500cps media.

7, or may be a high pressure (20bar) used in a closed system under vacuum (-0.8bar).


Outline dimension chart:



Flow graph:
